OpenGL 스피어 렌더링하기

Study/OpenGL

OpenGL 스피어 렌더링하기

코딩하는 야구쟁이 2011. 10. 27. 11:14

#include <windows.h>
#include <iostream.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <gl/glut.h>
#include <math.h>

#define	PI	3.1415926
#define	No_T	50
#define No_P	50

float	theta, phi;
float	delta_theta, delta_phi;
float	start_theta, start_phi;

float	lightPositionR[] = { 0.0f, 0.0f, 5.0f, 1.0f};
float	lightPositionG[] = { 0.0f, 0.0f, 5.0f, 1.0f};
float	lightPositionB[] = { 0.0f, 0.0f, 5.0f, 1.0f};

float	diffuseLightR[] = { 1.0f, 0.0f, 0.0f, 1.0f};
float	diffuseLightG[] = { 0.0f, 1.0f, 0.0f, 1.0f};
float	diffuseLightB[] = { 0.0f, 0.0f, 1.0f, 1.0f};

float	specularLightR[] = { 1.0f, 0.0f, 0.0f, 1.0f};
float	specularLightG[] = { 0.0f, 1.0f, 0.0f, 1.0f};
float	specularLightB[] = { 0.0f, 0.0f, 1.0f, 1.0f};

float	spotRirection[] = {0.0f, 0.0f, -1.0f};

float	diffuseLight[] =  { 0.5f, 0.5f, 0.5f, 1.0f };
float	specularLight[] = { 1.0f, 1.0f, 1.0f, 1.0f };
float	lightPosition[] = { 0.0f, 0.0f, 10.0f, 1.0f };

GLfloat light0_position[] = {0.0f, 0.0f, 10.0f, 0.0f};

GLfloat light1_ambient[] =  {0.0f, 0.0f, 1.0f, 1.0f};
GLfloat light1_diffuse[] =  {0.0f, 0.0f, 1.0f, 1.0f};
GLfloat light1_specular[] =  {1.0f, 1.0f, 1.0f, 1.0f};
GLfloat light1_position[] = {0.0f, 0.0f, 100.0f, 0.0f};

struct  vector3d{
	float		x;
	float		y;
	float		z;
};

struct point3d{
	float		x;
	float		y;
	float		z;
	vector3d	normal;
};
point3d		*ver;
//point3d		PP[No_T][No_P];

struct face3{
	int			v1;
	int			v2;
	int			v3;
	vector3d	normal;
};
face3		*face;

float	Radius;
float	rotationX, rotationY;
int		No_V, No_F;

float	moveX, moveY;
int		lastX, lastY;

//********************* Material Data ****************//
typedef struct materialStruct{
	GLfloat	ambient[4];
	GLfloat	diffuse[4];
	GLfloat	specular[4];
	GLfloat	shininess;
}materialStruct;

materialStruct brassMaterials = {
	{0.33, 0.22, 0.03, 0.5},
	{0.78, 0.57, 0.11, 0.5},
	{0.99, 0.91, 0.81, 0.5},
	1.0
};

materialStruct redPlasticMaterials = {
	{0.3, 0.0, 0.0, 0.0},
	{0.6, 0.0, 0.0, 0.0},
	{0.8, 0.6, 0.6, 0.0},
	5.0
};

materialStruct whiteShineyMaterials = {
	{1.0, 1.0, 1.0, 1.0},
	{1.0, 1.0, 1.0, 1.0},
	{1.0, 1.0, 1.0, 1.0},
	10.0
};

//********************* Light Data ****************//
typedef struct lightingStruct{
	GLfloat	ambient[4];
	GLfloat	diffuse[4];
	GLfloat	specular[4];
}lightingStruct;

lightingStruct whiteLighting = {
	{0.0, 0.0, 0.0, 1.0},
	{1.0, 1.0, 1.0, 1.0},
	{1.0, 1.0, 1.0, 1.0}
};

lightingStruct coloredLighting = {
	{0.2, 0.0, 0.0, 1.0},
	{0.0, 1.0, 0.0, 1.0},
	{0.0, 0.0, 1.0, 1.0}
};

GLfloat	light0_pos[4] = {0.9, 0.9, 2.25, 0.0};

materialStruct	*currentMaterials;
lightingStruct	*currentLighting;

float	angle[3];
int		axis;

void	Sphere_Vertex(void) {

int		i, j;
	int		count=0;

No_V = No_T * (No_P-2) + 2;
	ver = new point3d[No_V];

	start_theta = 0.0;
	delta_theta = 2* PI/ No_T;

start_phi = -PI/2.0;
	delta_phi = PI / (No_P-1);

	ver[count].x = Radius *  cos(-PI/2.0) * cos(0.0);
	ver[count].y = Radius *  cos(-PI/2.0) * sin(0.0);
	ver[count].z = Radius *  sin(-PI/2.0);
	count++;

	for (  j = 1; j < No_P-1; j++ ) {
		for ( i = 0; i < No_T; i++) {
			theta = start_theta + i * delta_theta;
			phi = start_phi + j * delta_phi;

			ver[count].x = Radius *  cos(phi) * cos(theta);
			ver[count].y = Radius *  cos(phi) * sin(theta);
			ver[count].z = Radius *  sin(phi);
			count++;
		}
	}

ver[count].x = Radius *  cos(PI/2.0) * cos(0.0);
	ver[count].y = Radius *  cos(PI/2.0) * sin(0.0);
	ver[count].z = Radius *  sin(PI/2.0);
	count++;

}

void	Modify_Vertex(void) {

int		i ;
	float	length;

for ( i = 0 ; i < No_V; i++ ) {
		if ( fabs(ver[i].z) < 0.5 ) {
			length = (4.0 * sqrt(3) - 1.0)/2.0 * fabs(ver[i].z) * fabs(ver[i].z) + 1/8.0;
			ver[i].x *= length;
			ver[i].y *= length;
		}
	}

}

void Sphere_Face(void) {
	int		count = 0;

No_F = 2 * No_T * (No_P - 2) ;
	face = new face3[No_F];

for (int i = 1; i < No_T; i++) {
		face[count].v1 = i;
		face[count].v2 = 0;
		face[count].v3 = i+1;
		count++;
	}
	face[count].v1 = No_T;
	face[count].v2 = 0;
	face[count].v3 = 1;
	count++;

	for ( int j = 1; j <= No_P - 3; j++ ) {
		for (int i = 1; i < No_T; i++) {
			face[count].v1 = (j-1)*No_T + i;
			face[count].v2 = (j-1)*No_T + i+1;
			face[count].v3 = j*No_T     + i;
			count++;

face[count].v1 = (j-1)*No_T + i+1;
			face[count].v2 = j*No_T     + i+1;
			face[count].v3 = j*No_T     + i;
			count++;
		}
		face[count].v1 = j*No_T;
		face[count].v2 = (j-1)*No_T + 1;
		face[count].v3 = (j+1)*No_T;
		count++;

face[count].v1 = (j-1)*No_T + 1;
		face[count].v2 =  j   *No_T + 1;
		face[count].v3 = (j+1)*No_T;
		count++;
	}
	for ( i = 1; i < No_T; i++) {
		face[count].v1 = (No_P-3)*No_T + i;
		face[count].v2 = (No_P-3)*No_T + i+1;
		face[count].v3 = (No_P-2)*No_T + 1;
		count++;
	}
	face[count].v1 = (No_P-2)*No_T ;
	face[count].v2 = (No_P-3)*No_T + 1;
	face[count].v3 = (No_P-2)*No_T + 1;
	count++;
}

vector3d	Normalization (vector3d p) {
	float	mag;

mag = sqrt(p.x*p.x + p.y*p.y + p.z*p.z);
	p.x /= mag;
	p.y /= mag;
	p.z /= mag;

return	p;
}

vector3d Cross_Product(vector3d U, vector3d V)
{
	vector3d cross;

cross.x =         U.y * V.z - U.z * V.y ;
	cross.y = -1.0 * (U.x * V.z - U.z * V.x) ;
	cross.z =         U.x * V.y - U.y * V.x ;

return	Normalization(cross);
}

void face_normal_computation(void) {

vector3d	U, V;
	int			first, second, third;

for ( int j = 0; j < No_F; j++ ) {
		first  = face[j].v1;
		second = face[j].v2;
		third  = face[j].v3;

U.x = ver[third].x - ver[second].x;
		U.y = ver[third].y - ver[second].y;
		U.z = ver[third].z - ver[second].z;

V.x = ver[first].x - ver[second].x;
		V.y = ver[first].y - ver[second].y;
		V.z = ver[first].z - ver[second].z;

face[j].normal = Cross_Product(U, V);
	}
}

float	Vector_Magnitude(vector3d U) {
	 return(sqrt(U.x*U.x + U.y*U.y + U.z*U.z));
}

void vertex_normal_computation(void) {
	vector3d	temp_normal;
	int			*index;
	int			count;

for ( int i = 0 ; i < No_V; i++ ) {
		index = new int[100];
		count = 0;
		for ( int j = 0; j < No_F; j++ ) {
			if ( i == face[j].v1 || i == face[j].v2 || i == face[j].v3 ) {
				index[count] = j;
				count++;
			}
		}
		temp_normal.x = 0.0;
		temp_normal.y = 0.0;
		temp_normal.z = 0.0;
		for ( int k = 0; k < count ; k++ ) {
			temp_normal.x += face[index[k]].normal.x;
			temp_normal.y += face[index[k]].normal.y;
			temp_normal.z += face[index[k]].normal.z;
		}
		temp_normal.x /= count;
		temp_normal.y /= count;
		temp_normal.z /= count;

ver[i].normal = Normalization(temp_normal);

		delete(index);
	}
}

void draw_object(void) {
	for ( int i = 0; i < No_F; i++ ) {
		glBegin(GL_POLYGON);
			glNormal3f(ver[face[i].v1].normal.x, ver[face[i].v1].normal.y, ver[face[i].v1].normal.z );
			glVertex3f(ver[face[i].v1].x, ver[face[i].v1].y, ver[face[i].v1].z );
			glNormal3f(ver[face[i].v2].normal.x, ver[face[i].v2].normal.y, ver[face[i].v2].normal.z );
			glVertex3f(ver[face[i].v2].x, ver[face[i].v2].y, ver[face[i].v2].z );
			glNormal3f(ver[face[i].v3].normal.x, ver[face[i].v3].normal.y, ver[face[i].v3].normal.z );
			glVertex3f(ver[face[i].v3].x, ver[face[i].v3].y, ver[face[i].v3].z );
		glEnd();
	}
}

void init (void)
{
	glClearColor (0.0, 0.0, 0.0, 0.0) ;

glShadeModel(GL_SMOOTH);
//	glShadeModel(GL_FLAT);

glEnable(GL_DEPTH_TEST);
	glEnable(GL_LIGHTING);
	glEnable(GL_LIGHT0);

glLightfv(GL_LIGHT0, GL_DIFFUSE, diffuseLight);
	glLightfv(GL_LIGHT0, GL_SPECULAR, specularLight);
	glLightfv(GL_LIGHT0, GL_POSITION, lightPosition);
	glLightf (GL_LIGHT0, GL_SPOT_CUTOFF, 40.0f);
	glLightf (GL_LIGHT0, GL_SPOT_EXPONENT, 80.0f);

glEnable(GL_LIGHT1);
	glLightfv(GL_LIGHT1, GL_DIFFUSE, diffuseLightR);
	glLightfv(GL_LIGHT1, GL_SPECULAR, specularLightR);
	glLightfv(GL_LIGHT1, GL_POSITION, lightPositionR);

glEnable(GL_COLOR_MATERIAL);
	glColorMaterial(GL_FRONT, GL_AMBIENT_AND_DIFFUSE);
	glMaterialfv(GL_FRONT, GL_SPECULAR, specularLight);
	glMateriali(GL_FRONT, GL_SHININESS, 128);
/*
	currentMaterials = &redPlasticMaterials;
	glMaterialfv(GL_FRONT, GL_AMBIENT, currentMaterials->ambient);
	glMaterialfv(GL_FRONT, GL_DIFFUSE, currentMaterials->diffuse);
	glMaterialfv(GL_FRONT, GL_SPECULAR, currentMaterials->specular);
	glMaterialf(GL_FRONT, GL_SHININESS, currentMaterials->shininess);

currentLighting = &whiteLighting;
	glLightfv(GL_LIGHT0, GL_AMBIENT, currentLighting->ambient);
	glLightfv(GL_LIGHT0, GL_DIFFUSE, currentLighting->diffuse);
	glLightfv(GL_LIGHT0, GL_SPECULAR, currentLighting->specular);
	glLightfv(GL_LIGHT0, GL_POSITION, light0_pos);
*/

Radius = 1.0;
	moveX = 0.0;
	moveY = 0.0;
	lastX = 0;
	lastY = 0;

Sphere_Vertex();
	Modify_Vertex();
	Sphere_Face();
	face_normal_computation();
	vertex_normal_computation();
}

void reshape (int w, int h)
{
	glViewport(0, 0, w, h);
	glMatrixMode (GL_PROJECTION);
	glLoadIdentity();
	gluPerspective(45.0, 1.0, 1.0, 1000);

}

void display (void)
{
	float	x, y, z;
	float	angle1, angle2;

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
	x = 3.0 * Radius * cos(moveY) * cos(moveX);
	y = 3.0 * Radius * cos(moveY) * sin(moveX);
	z = 3.0 * Radius * sin(moveY);

	glMatrixMode (GL_MODELVIEW);
	glLoadIdentity();

gluLookAt(x, y, z, 0, 0, 0, 0.0, 0.0, 1.0);
	draw_object();

glFlush ();
	glutSwapBuffers();
}

void SpecialKey( int key, int x, int y) {
	switch (key) {
	case GLUT_KEY_LEFT :	moveX -= 0.1;
							break;
	case GLUT_KEY_RIGHT :	moveX += 0.1;
							break;
	case GLUT_KEY_UP :		moveY += 0.1;
							break;
	case GLUT_KEY_DOWN :	moveY -= 0.1;
							break;
	default :				break;
	}
	if ( moveX > 2.0 * PI )
		moveX -= (2.0 * PI);
	else if ( theta < 0.0 )
		moveX += (2.0 * PI);
	glutPostRedisplay();
}

void main (int argc, char** argv)
{
    glutInit (&argc, argv);
    glutInitDisplayMode (GLUT_DOUBLE | GLUT_RGBA | GLUT_DEPTH);
	glutInitWindowPosition (100, 100);
	glutInitWindowSize (500, 500);

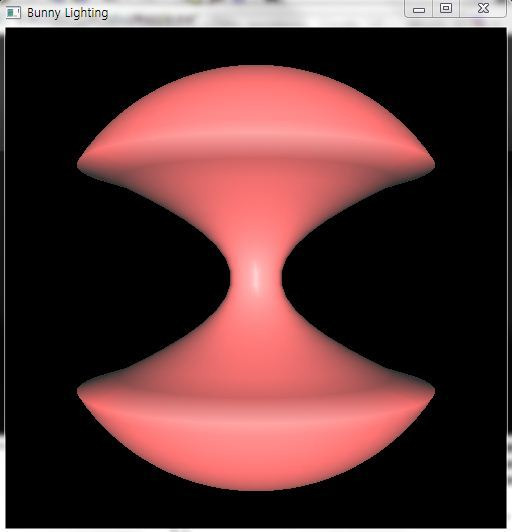

	glutCreateWindow ("Bunny Lighting");
	glutDisplayFunc (display);
	glutSpecialFunc(SpecialKey);
	glutReshapeFunc (reshape);
	glutIdleFunc(display);

init();

	glutMainLoop();
}
